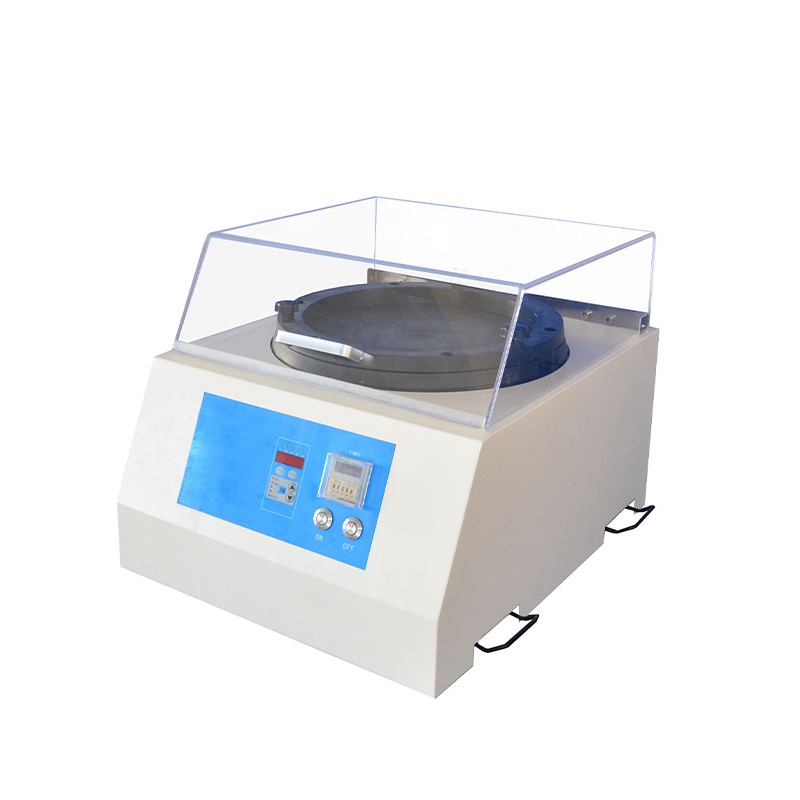

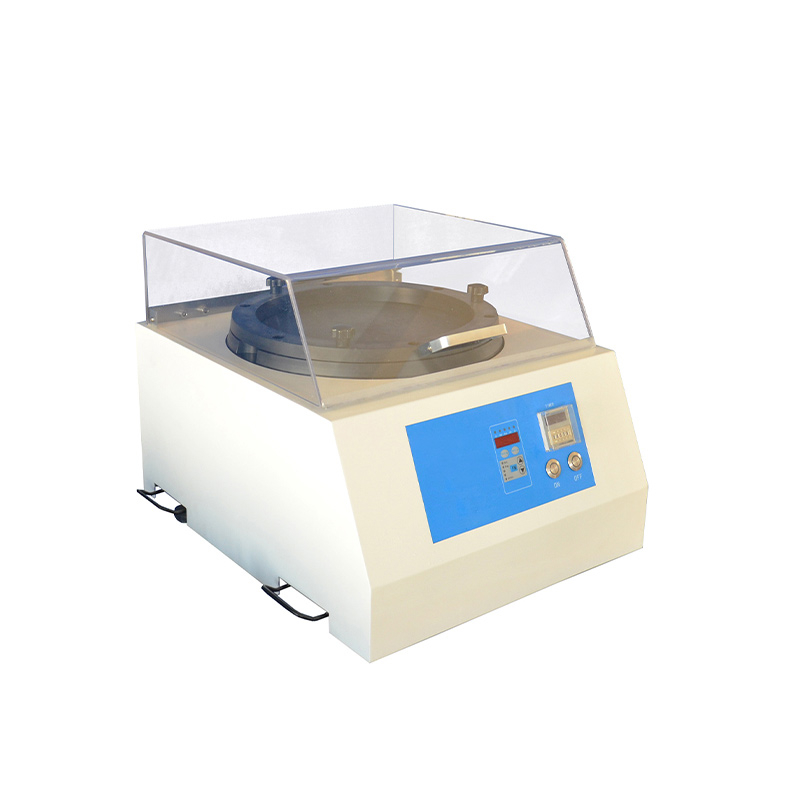

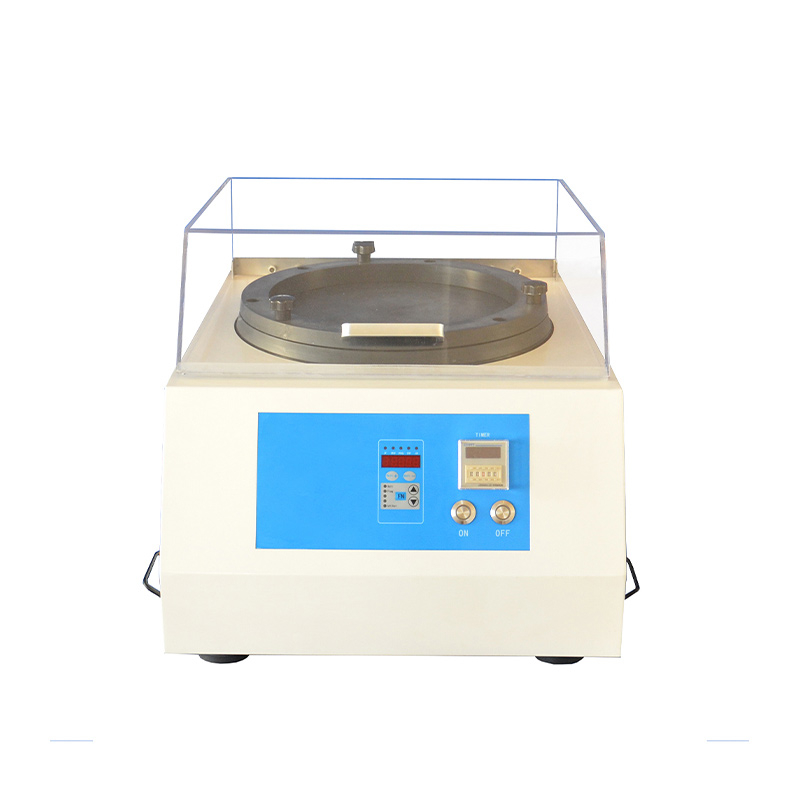

CY-UNIPOL-900Z vibration polisher

CY-UNIPOL-900Z vibration polisher is very suitable for surface polishing of materials that are difficult to prepare and precision components that need to fully remove stress and do not allow any overall damage, so as to fully meet the needs of material sample microscopic analysis (especially EBSD analysis)

Inquire Now Next Product

Main features：

The newly designed metallographic petrographic vibration polisher is widely used in major enterprises, institutions and scientific research institutions. It is very effective for the preparation of samples for SEM scanning electron microscope EBSD analysis. It completely surpasses similar foreign products.

The new generation of frequency conversion control makes the sample surface polishing more perfect, and the operating parameters are displayed digitally.

Fully automatic polishing without operator participation. The running time can be set to achieve unattended fully automatic polishing, improve personnel work efficiency, and reduce enterprise costs.

High-strength fiberglass shell, anti-corrosion and anti-collision. The transparent dust cover can ensure the cleanliness of the polishing disc.

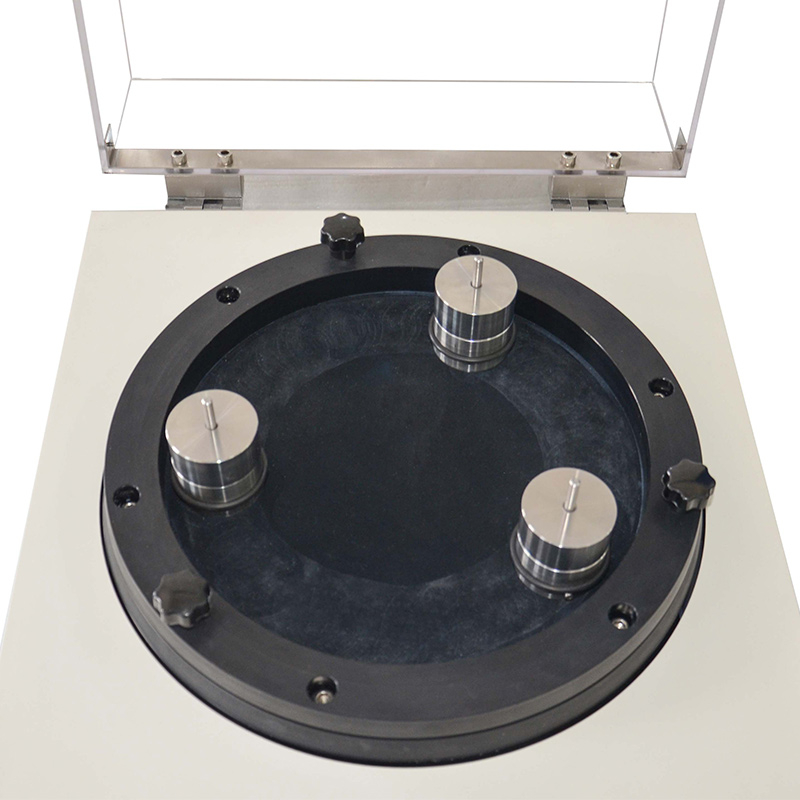

It can carry inlaid samples or larger samples that do not need to be inlaid.

Different specifications of sample holders are available: 1, 1.25, 1.5, 2 inches, 32mm, 50mm are optional, and special specifications can be customized.

Technical parameters:

Product name	CY-UNIPOL-900ZZ Vibration Polisher
Product model	CY-UNIPOL-900Z
Installation conditions	1. Good ventilation and heat dissipation environment. 2. Keep away from steam, dust, especially oily dust. 3. No corrosive, flammable gas or liquid. 4. No floating dust or metal particles. 5. The installation platform should be firm and vibration-free. 6. Keep away from electromagnetic noise interference. 7. Temperature and humidity: 10-85%RH (at 25℃ without condensation) 8. Temperature: -10℃~40℃. 9. Power supply: Single phase: AC220V 50Hz National standard three-pole socket 10A must have good grounding

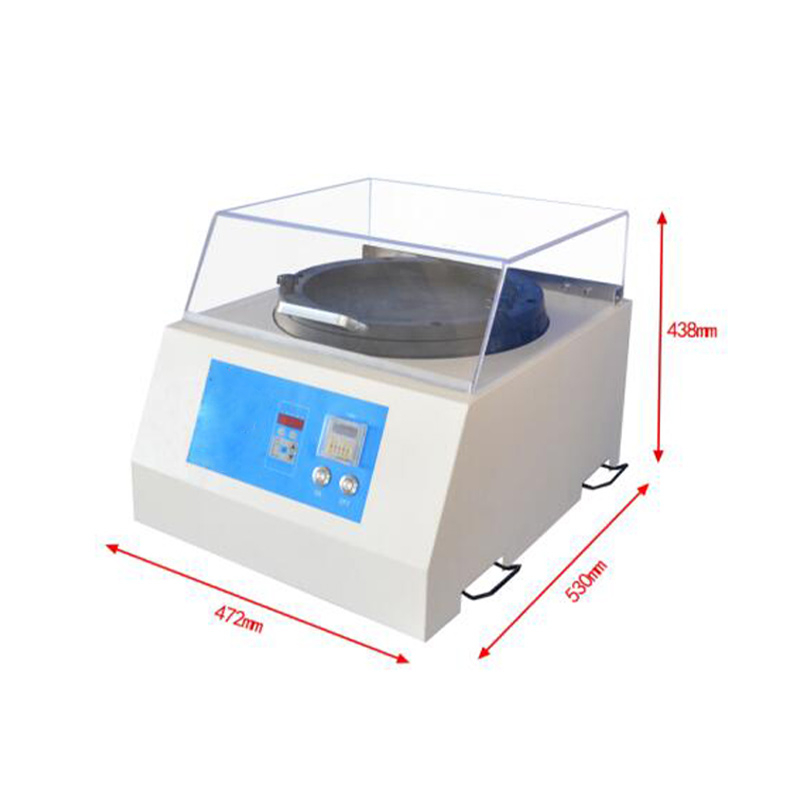

Main parameters	1. Input voltage single phase 220V/ 50Hz 2. Total power: 450W 3. Working plate diameter φ231 mm 4. Clamping specimen diameter: Standard: 1.25＂ Optional: 1＂, 1.5＂ and 2＂ 5. Vibration voltage adjustment range 0-260V effective 6. Amplitude adjustment range 40.0-240Hz effective 7. Max setting time 99 hours 99 minutes 8. Product specifications: 9.Dimensions: 472mmx530mmx438mm· 10.Weight: Approx. 82kg
