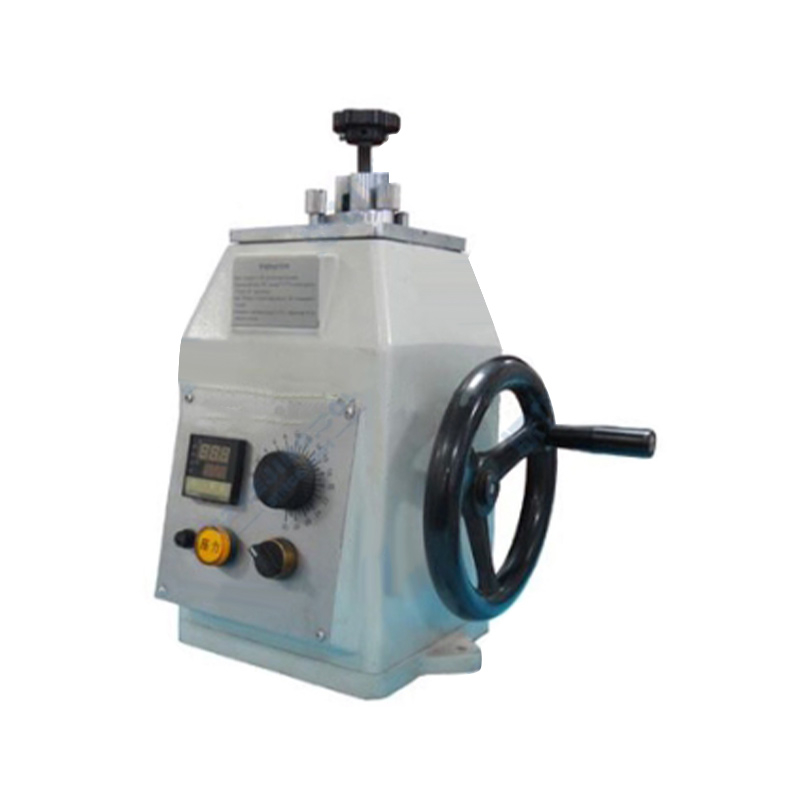

Metallographic Sample Mounting Machine

Application range:

CY-2B Metallographic Sample Mounting Machine is a mechanical mounting machine. By rotating the hand wheel outside the machine body, a pair of bevel gears drive the screw in the machine body, so that the lower mold for pressing the sample moves up and down in the mold sleeve. The mounting material mounts the sample inside the mounting material under heating and pressurization conditions. The forming pressure during the mounting process is automatically compensated by the spring in the machine body, and the pressure of the sample pressing is indicated by the signal light. When the signal light is on, it means that a certain pressure has begun to be applied to the mounted sample. The size of the sample mounted by the CY-2B Metallographic Sample Mounting Machine is adjustable, and mounting molds of different diameters can be selected according to needs. The CY-2B Metallographic Sample Mounting Machine is small in size, simple in structure, and easy to operate. It is a suitable equipment for hot mounting of samples in the laboratory.

Product model: CY-2B

Availability time: 2019-09-18

Installation size: 340mm×270mm×400mm

Weight: 33kg

CY-2B metallographic sample inlay machine is a mechanical inlay machine. By rotating the hand wheel on the outside of the machine body, a pair of bevel gears drive the screw in the machine body, so that the lower mold for pressing the sample moves up and down in the mold sleeve. The inlay material inlays the sample inside the inlay material under heating and pressurization conditions. The forming pressure during the inlay process is automatically compensated by the spring in the machine body, and the pressure of the sample pressing is indicated by the signal light. When the signal light is on, it means that a certain pressure has begun to be applied to the inlaid sample. The size of the inlaid sample inlaid by the CY-2B metallographic sample inlay machine is adjustable, and inlay molds of different diameters can be selected according to needs. The CY-2B metallographic sample inlay machine is small in size, simple in structure, and easy to operate. It is a suitable equipment for hot inlaying of samples in the laboratory.。
