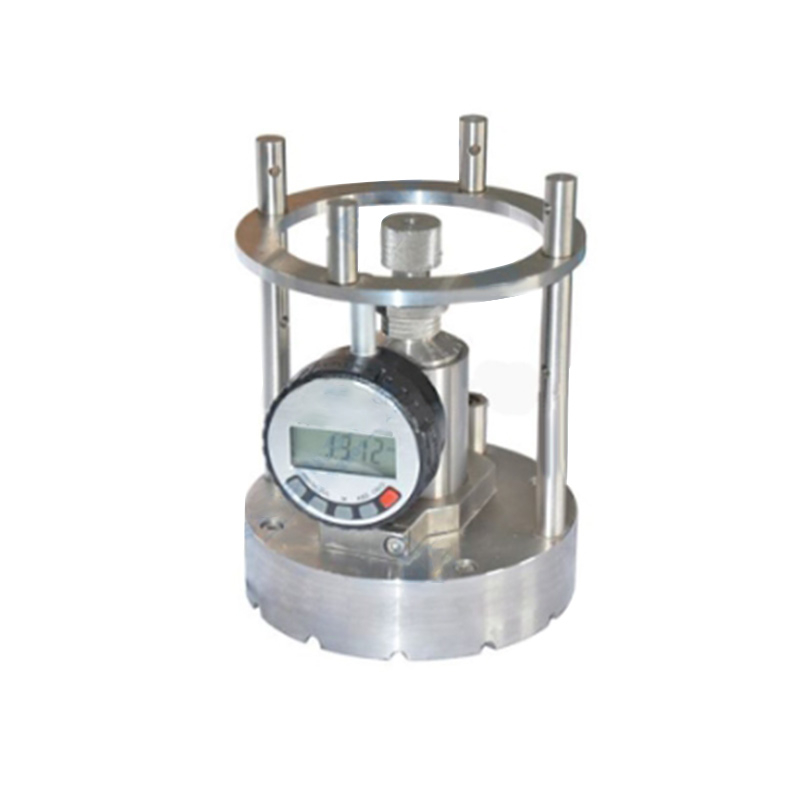

CY-80A precision grinding and polishing controller, referred to as grinding and polishing controller, is mainly used to control the flatness and parallelism of the surface of the polished sample, so that the sample after grinding and polishing has high dimensional accuracy and good quality surface state.

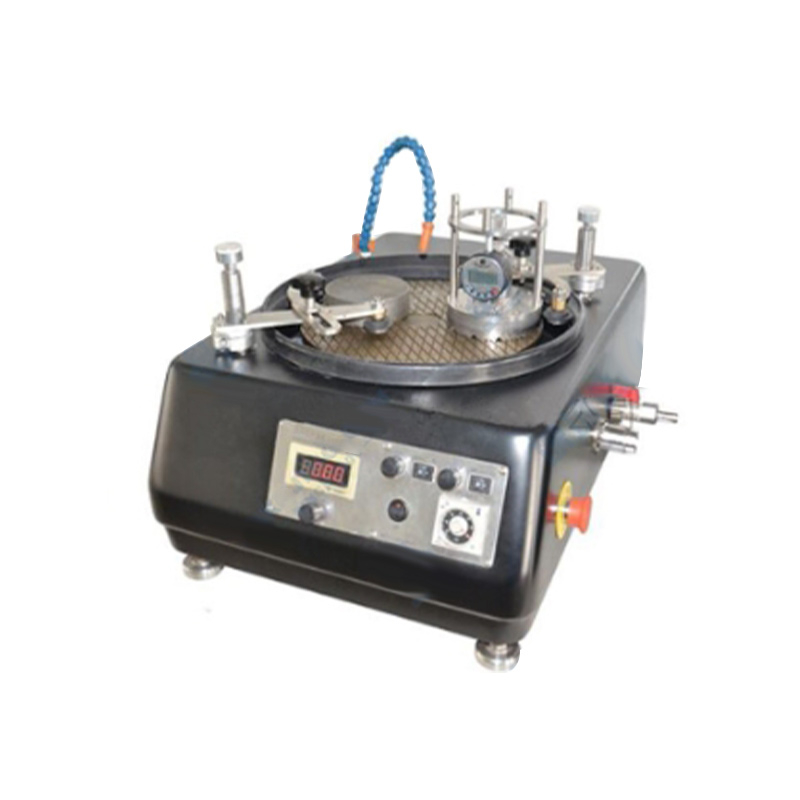

CY-80A precision grinding and polishing controller, referred to as grinding and polishing controller, is mainly used to control the flatness and parallelism of the surface of the polished sample, so that the sample after grinding and polishing has high dimensional accuracy and good quality surface state. The grinding and polishing control instrument is made of high-quality stainless steel material, beautiful appearance, exquisite manufacturing technology, mainly used in UNIPOL-1202, UNIPOL-802 precision grinding and polishing machine, is an indispensable precision instrument for grinding and polishing workpiece, especially suitable for grinding and polishing geological thin slice samples. The special load block of CY-80A precision grinding and polishing controller is connected with the controller with thread, and the sample is stuck on the load block in the form of adhesion. The load block has the advantages of high process repeatability and the diameter of the sample is not more than 80mm and the thickness is not more than 9mm.
Product Model: CY-80A
CY-80A precision grinding and polishing controller, referred to as grinding and polishing controller, is mainly used to control the flatness and parallelism of the surface of the polished sample, so that the sample after grinding and polishing has high dimensional accuracy and good quality surface state. The grinding and polishing control instrument is made of high-quality stainless steel material, beautiful appearance, exquisite manufacturing technology, mainly used in UNIPOL-1202, UNIPOL-802 precision grinding and polishing machine, is an indispensable precision instrument for grinding and polishing workpiece, especially suitable for grinding and polishing geological thin slice samples. The special load block of CY-80A precision grinding and polishing controller is connected with the controller with thread, and the sample is stuck on the load block in the form of adhesion. The load block has the advantages of high process repeatability and the diameter of the sample is not more than 80mm and the thickness is not more than 9mm。
Performance specifications and basic configurations | |
Main features | The parallelism and flatness of the surface of the ground sample can be strictly controlled, and the control accuracy is high. The grinding process can be used with a digital thickness gauge to observe the grinding amount of the sample at any time. It is especially suitable for grinding geological thin samples with high surface parallelism and flatness and sample thickness requirements. |
technical specification | ● Sample plate diameter: Ø80mm |
product standard | Dimensions: Outer diameter 117mm, height 155mm without counterweight, height 204mm with counterweight |
optional accessory | Counterweight (≥50g, ≤200g) |
