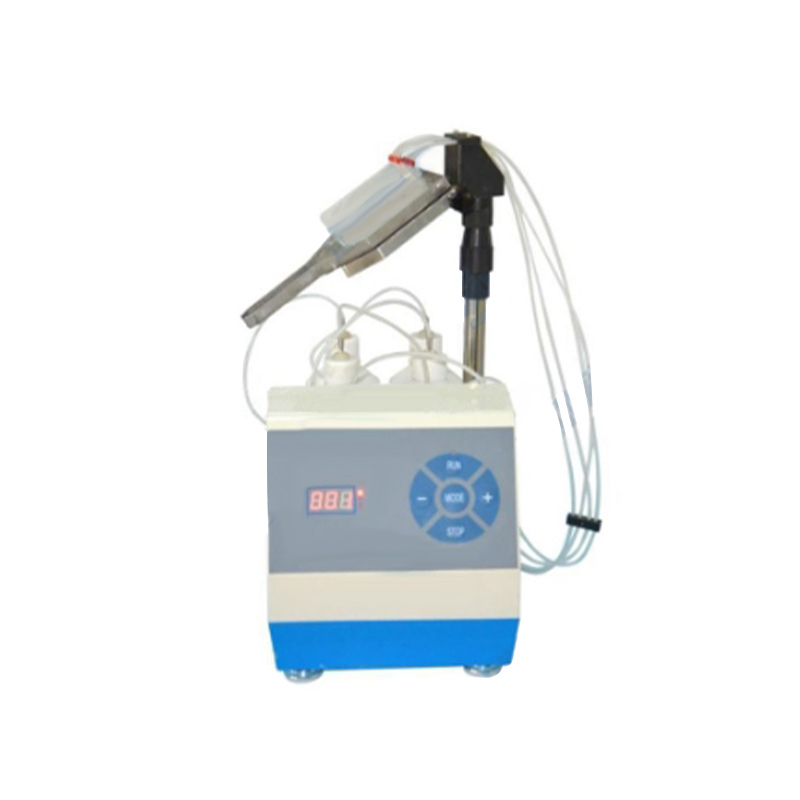

Automatic dripper for rough grinding, fine grinding and polishing

 Performance specifications and basic configurations

main feature

After reaching the predetermined time, the machine built-in timer will automatically stop the equipment, so as to realize the automatic filling of polishing agent.
● High precision and high reproducibility measurement can reduce the consumption of consumables.
● Microprocessor control system, simple and convenient operation interface.
● The uniform dosage reduces the preparation time and improves the preparation effect.
● The machine is equipped with 4 peristaltic pumps, and the four-station system can meet a variety of process requirements without changing refueling bottles. Consistent liquid addition shorens the preparation time, thereby reducing the amount of consumables required for preparation and significantly reducing the cost of consumables.
● The machine is equipped with dry powder abrasive drip system, through the peristaltic pump to lift the liquid drip in the dry powder abrasive storage box, the use of liquid flow to drive the dry powder abrasive uniform drip on the grinding disc, by controlling the liquid flow can effectively control the consumption of consumables abrasive. Easy and fast switching of abrasive types.
● Non-spray form.

technical specification

● Power adapter: IN :100~240VAC/50~60Hz /OUT: DC122A

● Suspension flow rate: 0.1 ~ 10ml/min (drop hose size φ4×φ2)
● Dry powder abrasive flow rate: 0.16 ~ 7.5ml/min (drop hose size φ4×φ2)
● Number of liquid pump: 4
● Liquid bottle volume: 600ml/ bottle ×4
● Dry powder box size :90(mm)×60(mm)×27(mm)
● Time timer: 1 ~ 999min

product size

230(mm) width x 370(mm) depth x 450(mm) height

product weight

11Kg
