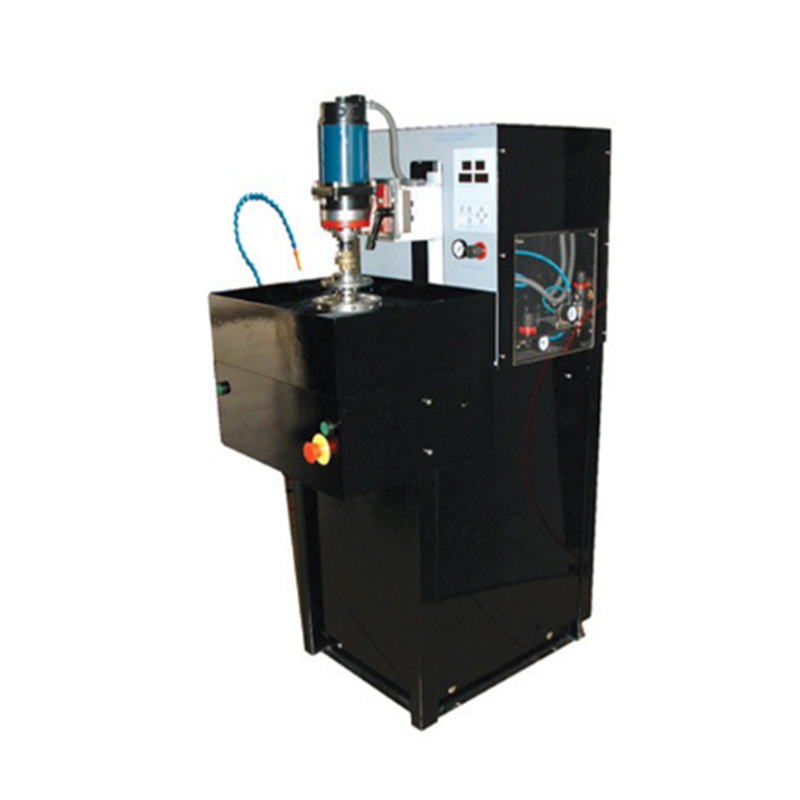

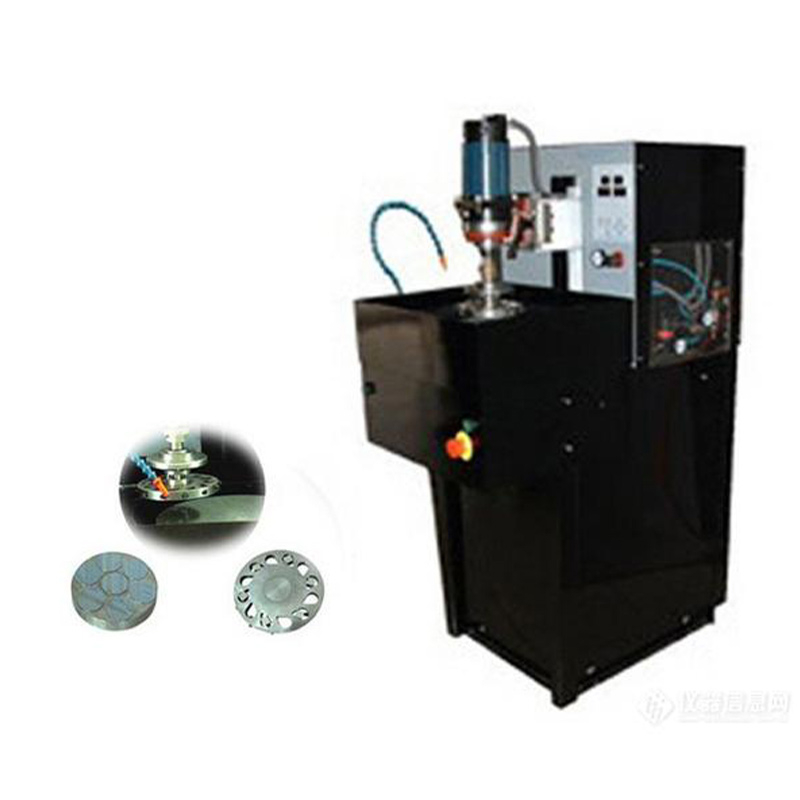

The Vacuum Heating Pressure Adjustable Grinding and Polishing Machine is suitable for grinding and polishing a variety of materials, including artificial crystals, ceramics, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium, and other crystals), quartz glass, rocks, and hard and brittle materials like white sapphire and blue sapphire.
The Vacuum Heating Pressure Adjustable Grinding and Polishing Machine is suitable for grinding and polishing a variety of materials, including artificial crystals, ceramics, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium, and other crystals), quartz glass, rocks, and hard and brittle materials like white sapphire and blue sapphire.
The device has a vacuum adsorption sample tray, the grinding tray can be heated to 150 ° C, and the temperature is controlled, which can achieve accurate grinding and polishing of the sample.
Vacuum Adsorption: The sample holder uses vacuum adsorption to ensure the stability and safety of the samples during the grinding process.
Temperature Control: The grinding plate can be heated up to 150°C with controllable temperature, suitable for grinding and polishing temperature-sensitive materials.
Infinite Pressure Adjustment: The applied pressure can be infinitely adjusted from 0 to 700N, adapting to the grinding needs of materials with different hardness.
Speed Adjustment: The grinding and polishing plate speed can be infinitely adjusted from 0 to 300rpm, and the sample holder speed can be infinitely adjusted from 0 to 250rpm, offering flexible grinding parameter settings.
Long Working Time Capability: The working time can be set from 0 to 24 hours, meeting the needs of long-duration continuous work.
Air Source Pressure Adjustment: The air source pressure is 6-8MPa (kg/cm²), providing a stable grinding pressure.
Vacuum Degree Control: The upper plate is a vacuum suction plate with a vacuum degree of ≤-0.05Mpa, ensuring the stability of the samples during high-speed rotation.
If you are interested in our Vacuum Heating Pressure Grinding and Polishing Machine, please feel free to contact us for more information and price.
Contact phone number: 183-3926-3857
Email: jack@cysitech.com
Contact person: Jack Yang
WeChat: 183 3926 3857
Product name | Vacuum Heating Pressure Grinding and Polishing Machine |
Product No | CY-1600VH |
Power | 110/220V； |
Lapping polish disc | Diameter: 12.6 "(320mm); Speed: 0 ~ 300r/min stepless adjustment; Motor power: 1.1kw ~ 1.5kw; Flatness: 0.015mm; |
Sample | Diameter: 160mm; Speed: 0 ~ 250r/min stepless adjustment; Motor power: 185w; |
Working hours | 0～24 hours |
Apply pressure | 0～700N stepless adjustment; |
Air source pressure | 6-8MPa（kg/cm2） |
heat | Bottom plate heating, room temperature ~ 150℃, temperature controllable |
Product specification | 1, overall size (L×W×H) : 938×551×1441mm 2. Weight: 220kg |
Component Name | Vacuum Heating Pressure Grinding and Polishing Machine |
Major Host | Vacuum heating pressure Grind polish machine |
Controller | Touch screen control |
Major parts | Metal, ceramic, plastic |
Random accessories | Cast aluminum plate, load plate, magnetic film, polishing film |
User Manual | 1 set |
Intraocular crystal: used for grinding and polishing of intraocular crystal materials.
Ceramics: suitable for the surface treatment of ceramic materials.
Infrared optical materials: such as zinc selenide, zinc sulfide, silicon, germanium and other crystal grinding and polishing.
Quartz glass: used for grinding and polishing of quartz glass materials.
Rock: suitable for grinding and polishing of rock samples.
Hard and brittle materials: such as white gems, sapphire and other hard and brittle materials grinding and polishing.
Automotive manufacturing: Processing body parts, metal frames, wheels, crankshafts, etc., to provide smooth surfaces and improve corrosion resistance.
Electronic products: Processing mobile phone shell, electronic parts, hard drive components, etc., to ensure product appearance quality.
Precision machinery: high-precision mechanical parts, such as bearings, gears, precision tools surface treatment.
Metal products: stainless steel, aluminum alloy, copper and copper alloy and other metal products polishing.
Jewelry: Fine grinding and polishing of gems and metals to enhance luster and beauty.
